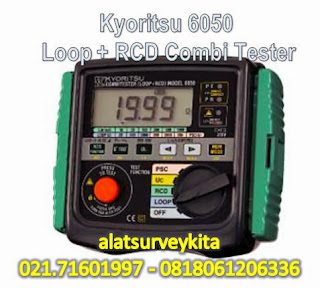

Kyoritsu 6050 (LOOP+RCD) Combi Tester

Kyoritsu 6050 (LOOP+RCD) Combi Tester Keterangan • Kew Combitester provides the ultimate in Microprocessor technology offering Loop and RCD tests with a comprehensive memory and downloading test results. • LOOP Impedance 200/ 2000© range measurement is carried out using a test current of 15mA. This current will not trip RCD’ s rated at 30mA or greater. • High resolution for low Loop Impedance ( resolution of 0.01© ) on 20© range. • Direct reading of Prospective Short Circuit Current ( PSC) and earth fault current. • RCD tests at 0 and 180 degree phase angle switch permit quick tests and consistent readings. • Test of a large kind of RCD' s Standard, Selective, AC and A ( DC sensitive breakers) . • Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings. • RCD Ramp test in order to indicate the actual tripping current of RCD. • Contact Voltage Reading ( UC) . with two selectable contact voltage limits ( 50 and 25V) . • Visual indication of correct wiring status and automatic lock-out if test resistors overheats. • Designed to IEC 61010-1, IEC 61557 and high protection degree IP54. • The stored data can be transferred to PC via Optical Adapter Model 8212-RS232C and 8212-USB. Loop Impedance Ranges ( Z reading) : 20/ 200/ 2000© Loop Impedance Ranges without tripping RCDs : 200 and 2000© with 15mA of test current Max test current on Loop ranges : 3A ( 20© ) / 15mA ( 200 and 2000© ) PSC / Earth Fault Current Ranges : 200/ 2000A/ 20kA RCD Test AC Type ( Standard and Selective) : × 1/ 2 × 1 × 5 Auto Ramp 10, 30, 100, 300, 500, 1000mA 10, 30, 100, 300, 500, 1000mA 10, 30, 100mA 10, 30, 100, 300, 500mA RCD Test A Type ( Standard and Selective) : 10, 30, 100, 300, 500mA RCD Test Currents multipliers : × 1/ 2, × 1, × 5 ( max 1000mA type AC) ( max 500mA type A) RCD Test Time Duration : 1000ms: × 1/ 2, × 1, DC 200ms: × 5, DC ( 500mA) , and × 1 ( 1000mA) RCD Ramp Test : From 20% to 110% of I” n ( AC type) Contact Voltage Block ( RCD) : 50V and 25V Contact Voltage Reading ( RCD) : 100.0V Phase and Earth ( 2 wires only) measurements : RCD ( without DC) LOOP Working Voltage for Loop Tests : 20© : 230V+ 10% -15% 200/ 2000© : 230V+ 10% -15% and 400V+ 10% -15% Working Voltage for RCD Tests : 230V+ 10% -15% Voltage Test : 100 ~ 260V ( LOOP 200/ 2000© , PSC 200A: 100 ~ 440V) Memory : 300 memory locations PC Software, Connection Cable : optional with 8212-USB, 8212-RS232C Safety Standards : IEC 61010-1 CAT.III 300V, IEC 61557 Power Source : 8 × 1.5V R6P( AA) Dimensions : 186( L) × 167( W) × 89( D) mm Weight : 980g Accessories Included : Molded Plug Test Lead 7125-EU Pouch for Test Leads Instruction Manual Shoulder Strap Batteries Optional Accessories : 7121 ( Distribution Board Test Leads) 8212-RS232C ( RS232C adaptor with KEW Report ( Software) ) 8212-USB ( USB adaptor with KEW Report ( Software) ) Informasi Dan Pemesanan Hub. Hary Nugroho : 021.71601997 - 081806120636 Fax : 021.7318012 Email . alatsurveykita61@gmail.com
